Capture Snapshots

Capture snapshots from both s3 and index for debugging purpose.

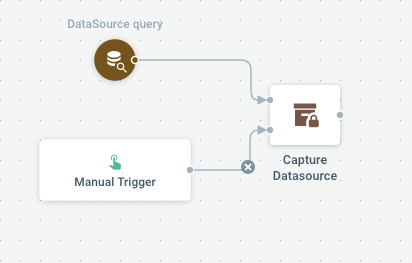

This Flow triggers a snapshots capture for a structured datasource, mainly for debugging purposes. Structured datasources are continuously synchronizing a storage (an object storage or a local FS exposed as an S3-compatible storage), and an SQL index. Sometimes, synchronization issues cannot be easily fixed and it can be useful to load the initial representation of both endpoints.

Parameters

Name Type Default Mandatory Description
DataSourceName text true Name of the datasource to capture.
TargetFolder text true Folder where to store the snapshots (must be created).
Format select, possible values: JSON (json), BoltDB (bolt) json true Output format for the snapshots.

Trigger Type

Manual

JSON Representation

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
{
  "Label": "Capture Snapshots",
  "Owner": "pydio.system.user",
  "Metadata": {
    "Description": "Capture snapshots from both s3 and index for debugging purpose",
    "Icon": "mdi mdi-reload",
    "TplCategory": "maintenance",
    "Usage": "This Flow triggers a snapshots capture for a structured datasource, mainly for debugging purposes. Structured datasources are continuously synchronizing a storage (an object storage or a local FS exposed as an S3-compatible storage), and an SQL index. Sometimes, synchronization issues cannot be easily fixed and it can be useful to load the initial representation of both endpoints."
  },
  "Actions": [
    {
      "ID": "actions.cmd.capture",
      "DataSourceSelector": {
        "Query": {
          "SubQueries": [
            {
              "type_url": "type.googleapis.com/object.DataSourceSingleQuery",
              "value": "CiF7ey5Kb2JQYXJhbWV0ZXJzLkRhdGFTb3VyY2VOYW1lfX0="
            }
          ]
        }
      },
      "Parameters": {
        "format": "{{.JobParameters.Format}}",
        "prefix": "snapshot-",
        "sides": "both",
        "target": "{{.JobParameters.TargetFolder}}"
      }
    }
  ],
  "Parameters": [
    {
      "Name": "DataSourceName",
      "Description": "Name of the datasource to capture.",
      "Mandatory": true,
      "Type": "text"
    },
    {
      "Name": "TargetFolder",
      "Description": "Folder where to store the snapshots (must be created).",
      "Mandatory": true,
      "Type": "text"
    },
    {
      "Name": "Format",
      "Description": "Output format for the snapshots.",
      "Value": "json",
      "Mandatory": true,
      "Type": "select",
      "JsonChoices": "{\"json\": \"JSON\", \"bolt\": \"BoltDB\"}"
    }
  ]
}
