Export Audits Report

Read audit report and transform to XLSX.

This Flow creates a spreadsheets based on the Audit Reports and save it XLSX or CSV.

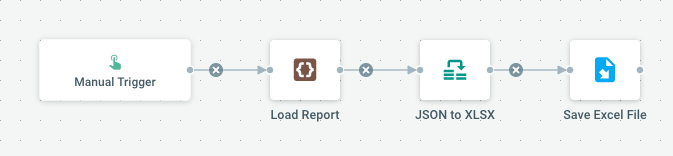

How It Works

The steps are as follow: - An internal gRPC call to the Audit Reports service: the method reports.ReportsService.ListSharedResources is identified by {PackageName}.{ProtobufService}.{ProtobufMethod}, sent in JSON and the result is returned in JSON as well. - Transform the JSON of the previous step into XLSX or CSV using the "Data Transformation" tool: define the destination columns using JSONPath or Go Template to point to the source data.
- Finally store the file.

Parameters

Name Type Default Mandatory Description
OutputPath text personal/admin/audit-export-{{now | date "2006-01-02"}}.xlsx true Where to store the output.
RequestLimit integer 1000 true Limit for 'Load Report' request.

Trigger Type

Manual

JSON Representation

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
{
  "Label": "Export Audits Report",
  "Owner": "pydio.system.user",
  "Metadata": {
    "Description": "Read audit report and transform to XLSX",
    "Icon": "mdi mdi-file-excel",
    "TplCategory": "analytics",
    "Usage": "This Flow creates a spreadsheets based on the Audit Reports and save it XLSX or CSV.\n\n### How It Works\n\nThe steps are as follow: \n - An internal **gRPC** call to the Audit Reports service: the method `reports.ReportsService.ListSharedResources`\n is identified by {PackageName}.{ProtobufService}.{ProtobufMethod}, sent in JSON and the result is returned in JSON as well.\n - Transform the JSON of the previous step into XLSX or CSV using the \"**Data Transformation**\" tool: define the destination columns using JSONPath or Go Template to point to the source data.  \n - Finally store the file."
  },
  "Actions": [
    {
      "ID": "actions.cmd.rpc",
      "Label": "Load Report",
      "Parameters": {
        "method": "reports.ReportsService.ListSharedResources",
        "request": "{\"Limit\": {{.JobParameters.RequestLimit}}}",
        "service": "pydio.grpc.reports"
      },
      "ChainedActions": [
        {
          "ID": "actions.etl.transform",
          "Label": "JSON to XLSX",
          "Parameters": {
            "csv-separator": ",",
            "expand": "",
            "expand_1": "$.Workspaces",
            "expand_2": "$.Workspaces",
            "expand_3": "$.Workspaces",
            "expand_4": "$.Workspaces",
            "expand_5": "$.Workspaces",
            "expand_6": "$.Workspaces",
            "format": "xlsx",
            "input": "jsonbody",
            "jsonpath": "$.Node.Path",
            "jsonpath_1": "$.Workspace.Scope",
            "jsonpath_2": "$.Workspace.Label",
            "jsonpath_3": "$.OwnerUser.Login",
            "jsonpath_4": "$.UsersReadCount",
            "jsonpath_5": "$.UsersWriteCount",
            "jsonpath_6": "$.Workspace.UUID",
            "name": "File/Folder",
            "name_1": "Resource Type",
            "name_2": "Label",
            "name_3": "Owner",
            "name_4": "Readable by",
            "name_5": "Writeable by",
            "name_6": "Workspace ID",
            "selector": "$.Resources"
          },
          "ChainedActions": [
            {
              "ID": "actions.tree.put",
              "Label": "Save Excel File",
              "Parameters": {
                "contents": "",
                "input": "rawbody",
                "target_file": "{{.JobParameters.OutputPath}}"
              }
            }
          ]
        }
      ]
    }
  ],
  "Parameters": [
    {
      "Name": "OutputPath",
      "Description": "Where to store the output.",
      "Value": "personal/admin/audit-export-{{now | date \"2006-01-02\"}}.xlsx",
      "Mandatory": true,
      "Type": "text"
    },
    {
      "Name": "RequestLimit",
      "Description": "Limit for 'Load Report' request.",
      "Value": "1000",
      "Mandatory": true,
      "Type": "integer"
    }
  ]
}
