ACL use cases

This how-to will display some real life use cases of the ACL feature.

At the bottom of this page you can find a glossary of all the possible values for the settings.

IP Restrictions

Deny Access to a workspace to a list of IP

This is an example on how to restrict access to a workspace to a list of specific IP, you could apply this rule to Cells, Share links and so on.

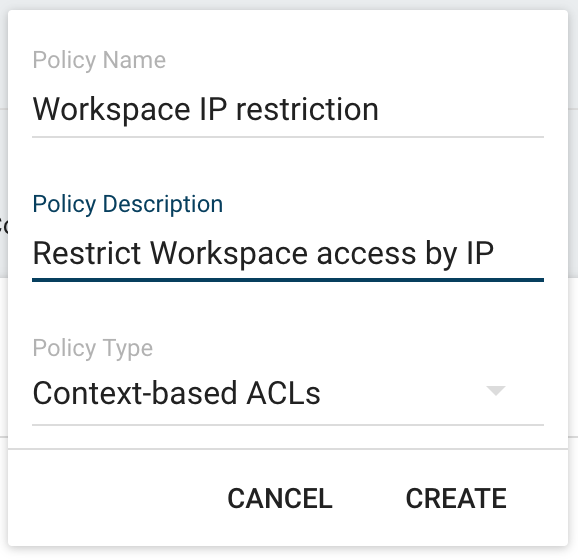

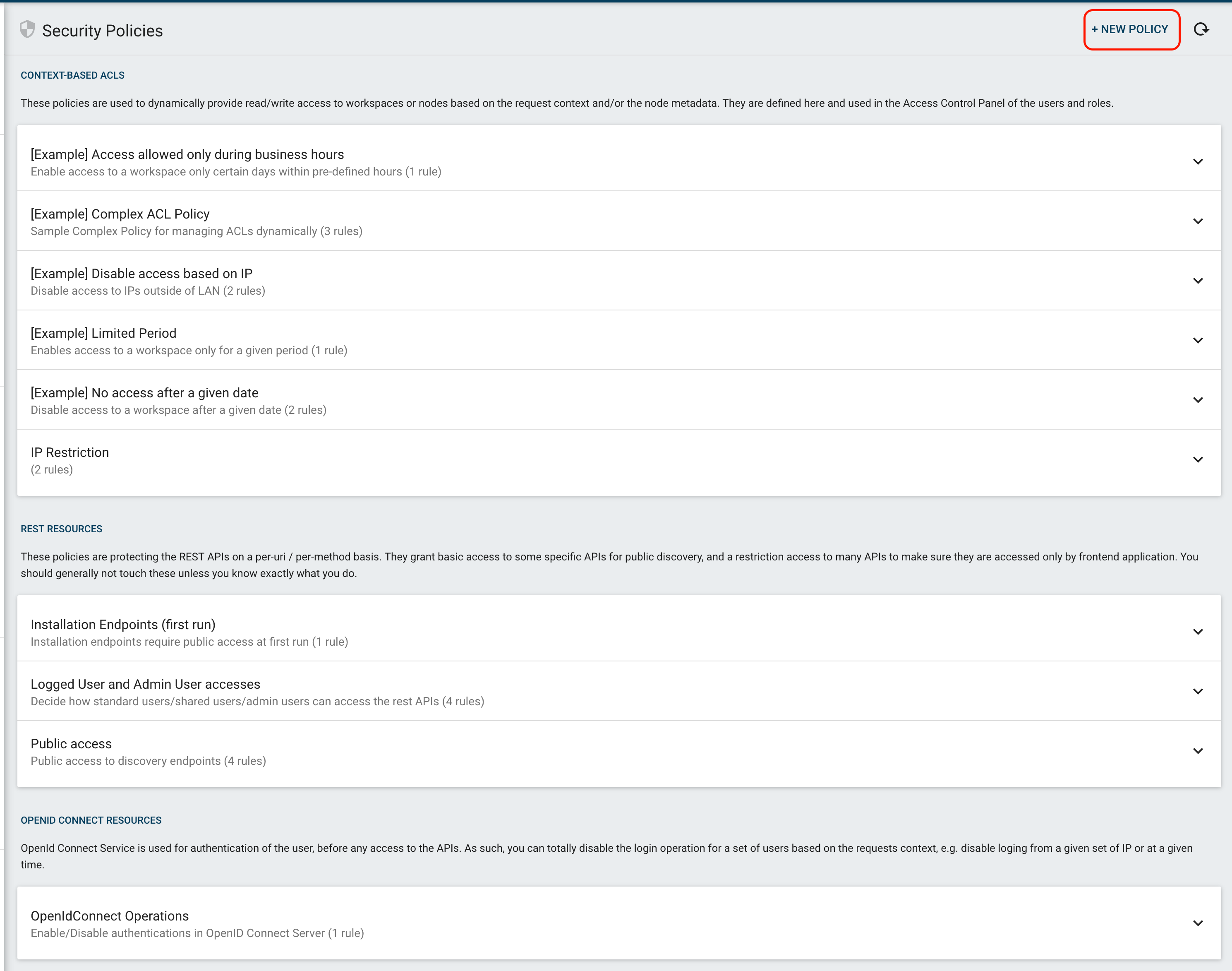

  • Create a New Policy (Policy Type: Context-based ACLs you can put a Name and a Description of your choice)

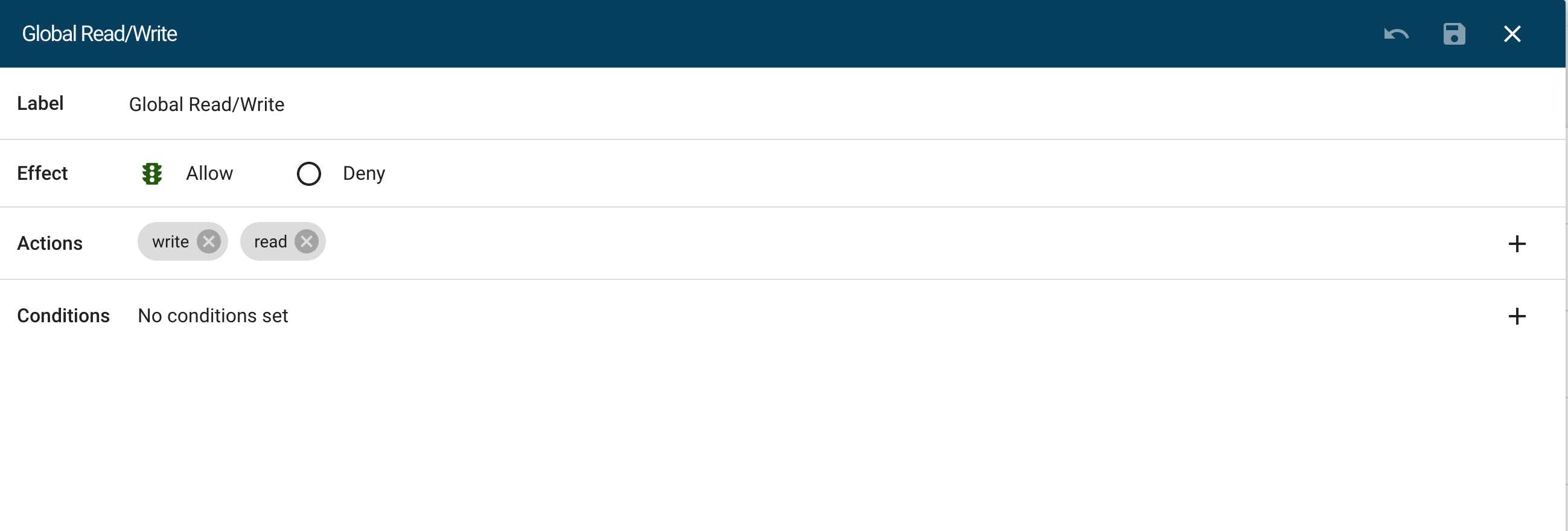

  • Then put default rights (They are mandatory otherwise other users will not have access. It will give read/write to everyone, but with the next rule we are going to filter them to a specific condition in your case IP)

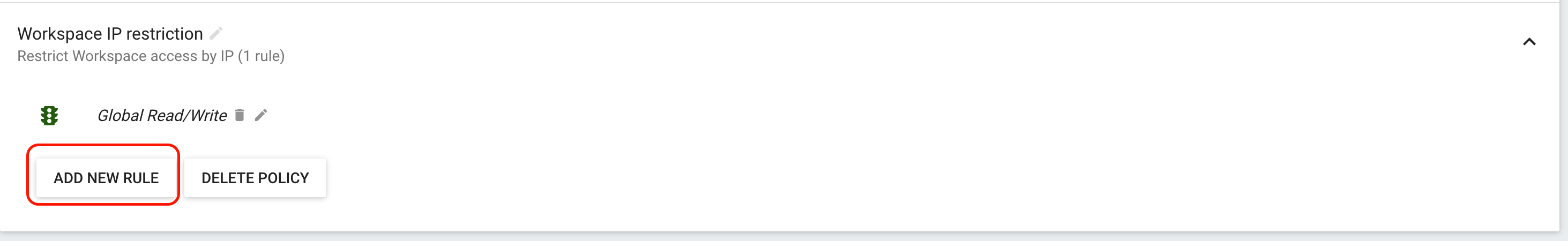

  • Now we are going to define the IP restriction rule, let's add a policy

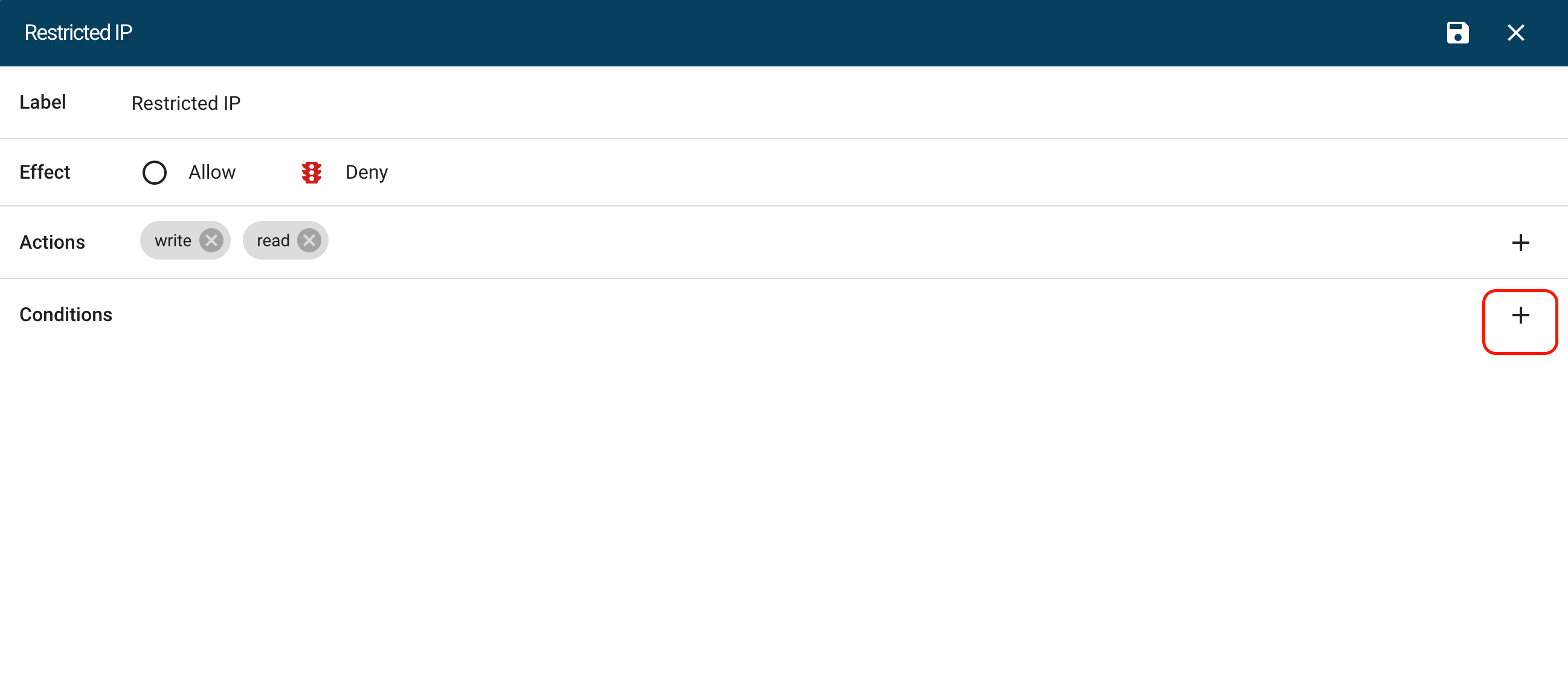

  • Give it a Label, effect Deny, Actions Read Write (you can set access as you wish) (as seen in screenshot 5)

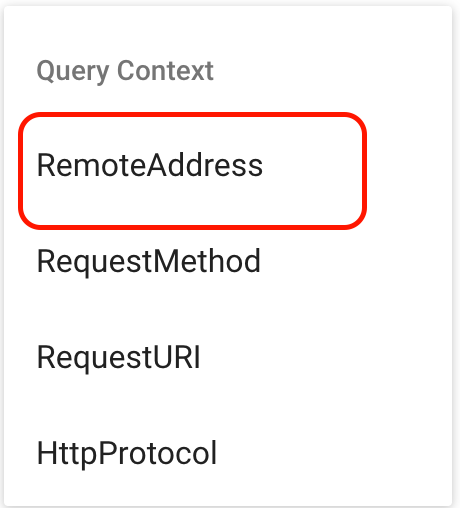

  • Now add a condition and choose RemoteAddress

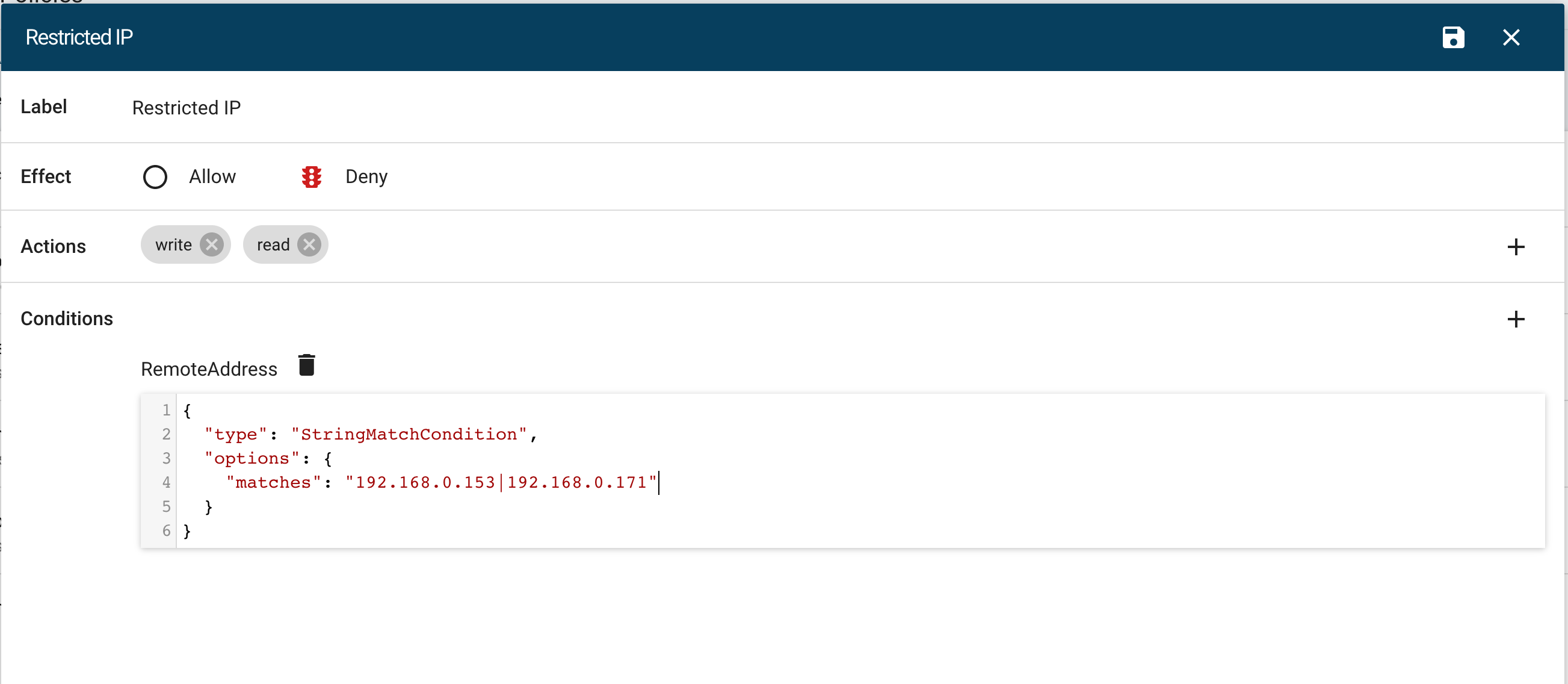

  • Then write the condition (it's using JSON)

So basically we want every IP that matches the list to be denied access (read and write as it is defined).

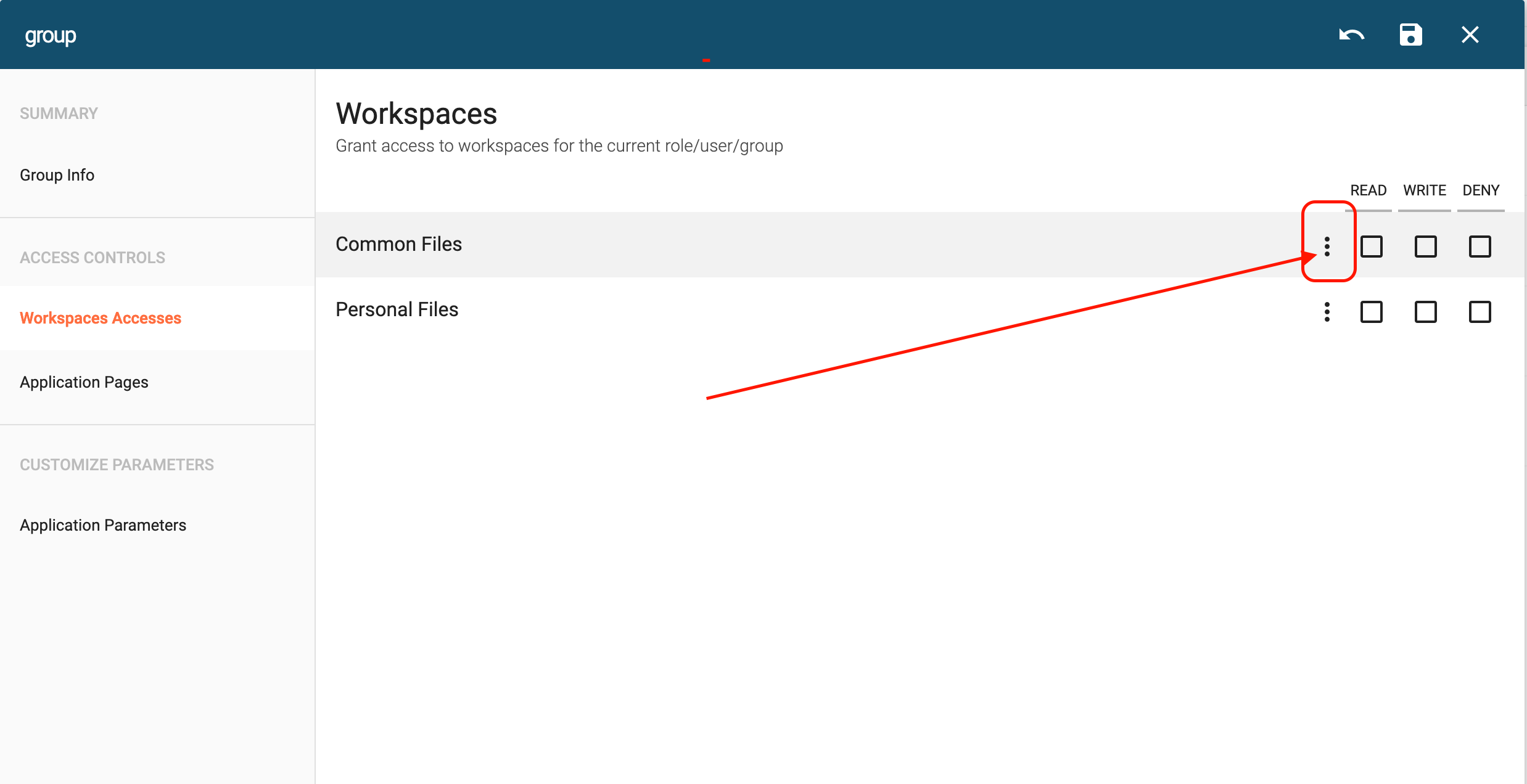

  • Now let's apply this rule (you can choose, user, group or role. (In this example we chose a group)

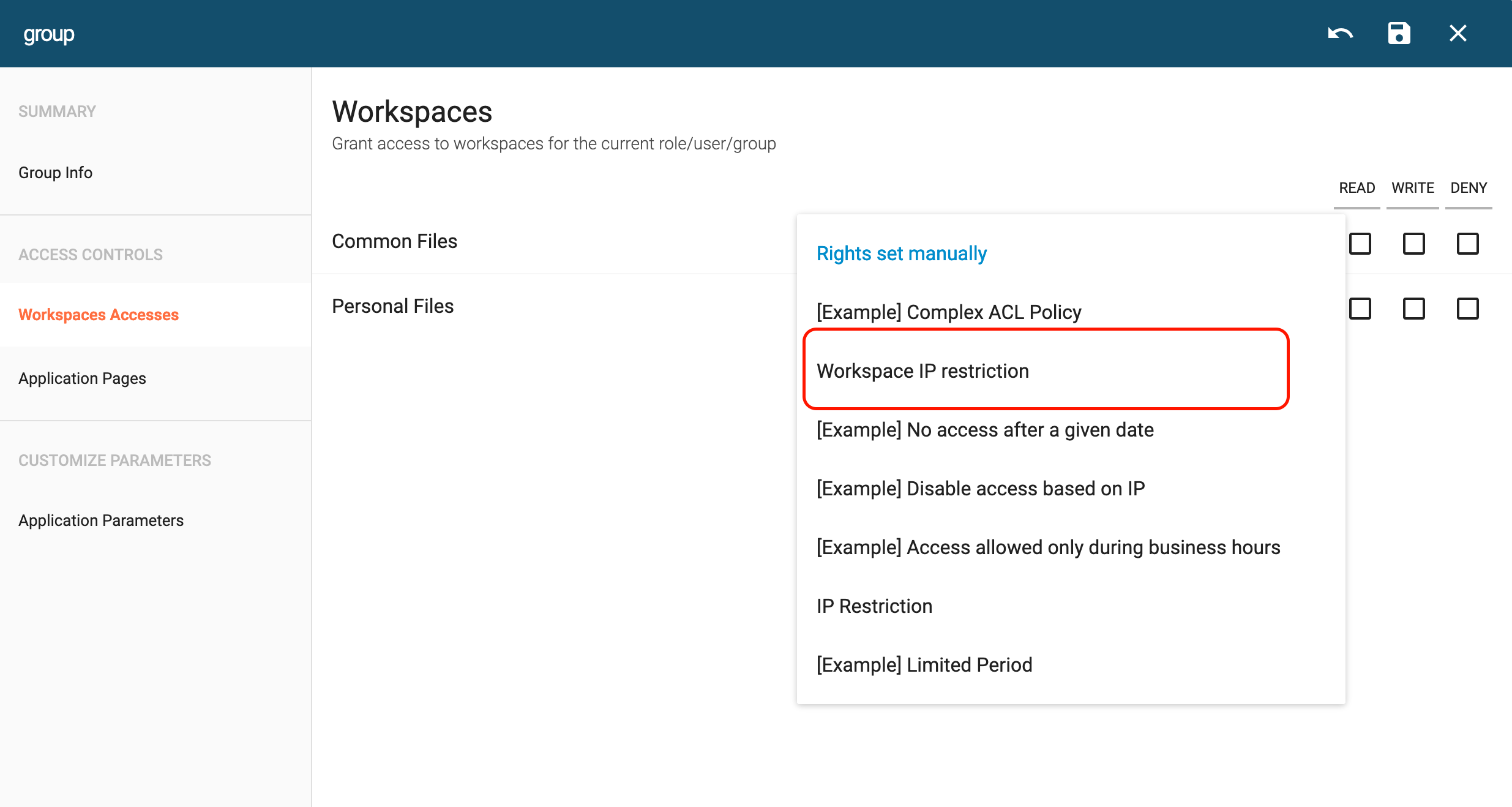

  • Select the rule (the label was defined in the First Step)

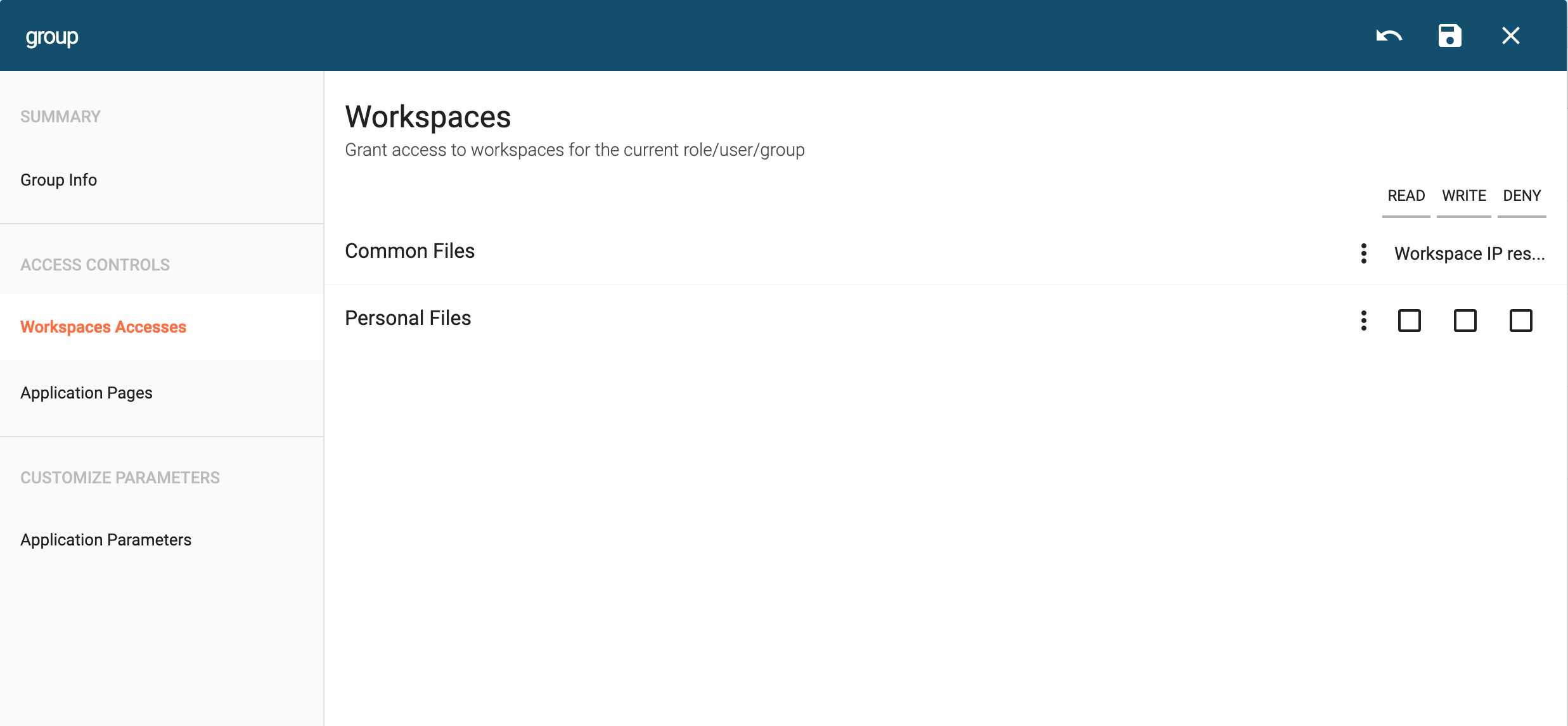

  • Once the rule is selected save the changes

You could also do the opposite of this rule and only give access to a list of IP by using StringNotMatchCondition

Allow access only to a specific IPs/range

  • Create a New Policy (Policy Type: Context-based ACLs)
  • Create the first rule that will Allow Access to specific IP addresses or a range

Allow:

1
2
3
4
5
6
{
  "type": "StringMatchCondition",
  "options": {
    "matches": "192.168.2.*"
  }
}

In this case we want every IP belonging to the sub network 192.168.2.0 to have R/W Access You an add multiple IP/ranges by separating the with a pipe 192.168.0.*|192.168.3.2|etc....

  • Now define the Deny Access rule. Deny:
1
2
3
4
5
6
{
  "type": "StringMatchCondition",
  "options": {
    "matches": "0.0.0.0/24"
  }
}

This rule is just written as a default, Access will be denied to anyone but the addresses set with the first rule

Date/Time Restrictions

REST method Restrictions

ACLs values:

Actions: | Action | Effect | Example| |--------- |------- | ------- | | Read | read a resource | for instance with a workspace it means that it's displayed in the list and readable | | Write | write a resource | for instance with a workspace you can upload resources or modify existing resources |

Query Context: | Query| Effect| Description | | ------- | ------- | ------- | | Remote Address| The client's remote address | this context is about the remote ip that requests access to the resource (usually a client) | Request Method | REST Methods | the context will be about a REST method such as (PUT, GET, DELETE, etc....) | Request URI | A Pydio Cell's endpoint | the context is about Cells Endpoints | | Http Protocol | | this context will be about the http protocol (http/https) | | UserAgent | The agent type that requests | this context is about the UserAgent such as (browsers, mobile apps, etc...)

Conditions: |Type |Options | Example | Description | |-----------------------|------------------|-----------------------|----- | | StringMatchCondition| "matches | "matches": "192.168.0.1" | condition is true if there is a match| | StringNotMatchCondition | "matches | "matches": "192.168.2.1" | condition is true if there is no match| | DateAfterCondition | "matches" | "matches": "2018-02-28T23:59+0100" | condition is true if date is after the one defined in the match | | WithinPeriodCondition| "matches" |"matches": "2018-02-01T00:00+0100/2018-04-01T00:00+0100" | condition is true if date is within the range of match | | OfficeHoursCondition | "matches" | "matches": "Monday-Friday/09:00/18:30" | condition is true if date & time are within the match |
